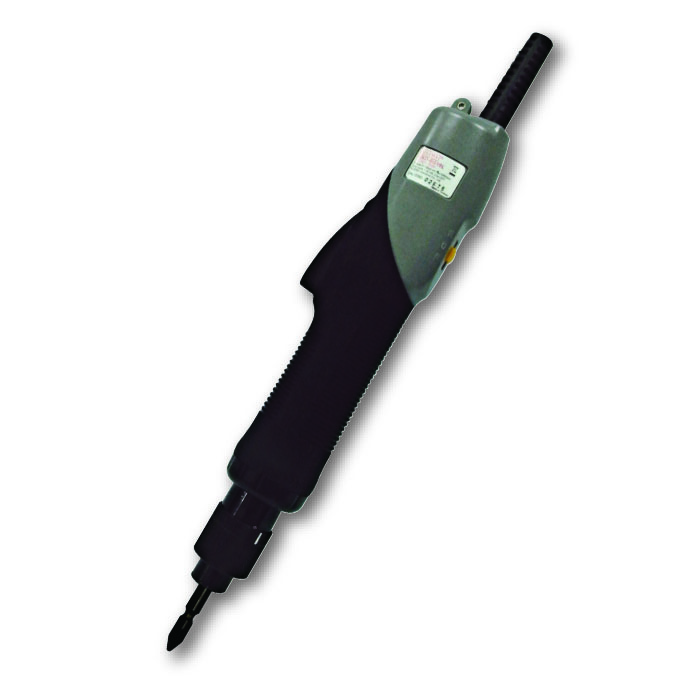

SK-BN500 Series
1.Adopting High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.
2.Smaller size, light weight, low noise-pollution, fashionable design, high stability and easy operation motor which gives the benefit of longer working-time. (3 years warranty on motor)
3.Brushless Motor has more stable torque output; it is best to fit for operating in clean-room circumstance and no worry of pollution will be arisen.
4.Best tool to assemble Watch, Laptop, Digital Camera, DVD Player, Cell Phone, Communication Equipment and High tech Products which need to be assembled in clean-room.
5.CE and ETL are optional
SK-BN500 Series
Product Spec
Model | SKD-BN512L | SKD-BN512P | SKD-BN512LF | SKD-BN512PF | SKD-BN517LF/PF | SKD-BN519L/P | |
Input Voltage | DC24V or DC32V | ||||||
Power Consumption | 55W | ||||||

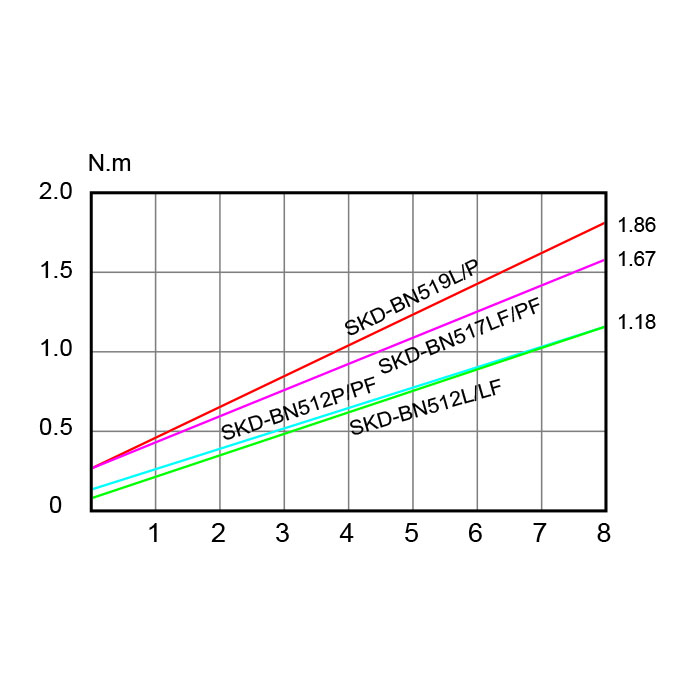

Torque | (Kgf.cm) | 1.5~12 | 2~12 | 1.5~12 | 2~12 | 3~17 | 3~19 |
(Lbf.in) | 1.33~10.44 | 1.77~10.44 | 1.33~10.44 | 1.77~10.44 | 2.57~14.78 | 2.57~16.46 | |
(N.m) | 0.15~1.18 | 0.2~1.18 | 0.15~1.18 | 0.2~1.18 | 0.29~1.67 | 0.29~1.86 | |
Repeatable Torque Accuracy(%) | ±3% | ||||||
Torque Adjustment | StepLess | ||||||
Free Speed (r.p.m) | HI | 1000 | 1000 | 2000 | 2000 | 2000 | 1000 |
LO | 700 | 700 | 一 | 一 | 一 | 700 | |
Screw Size Dia (mm) | Machine Screw | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 2.3~3.5 |
Tapping Screw | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 2.3~3.0 | |
Weight(g) | 520 | ||||||

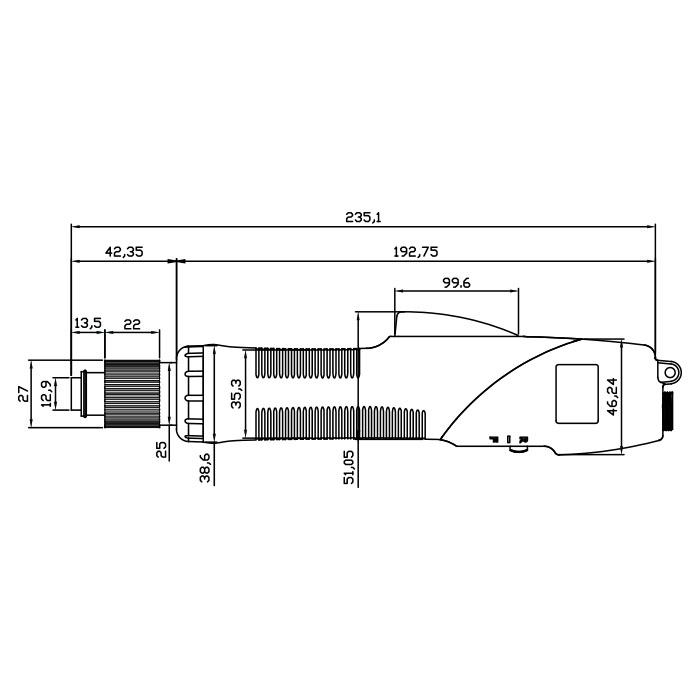

Length(mm) | 245 | ||||||
ESD(Anti-Static) | V(With Black housing) | ||||||
CE | V | ||||||
RoHS | V | ||||||
Bit Type |
