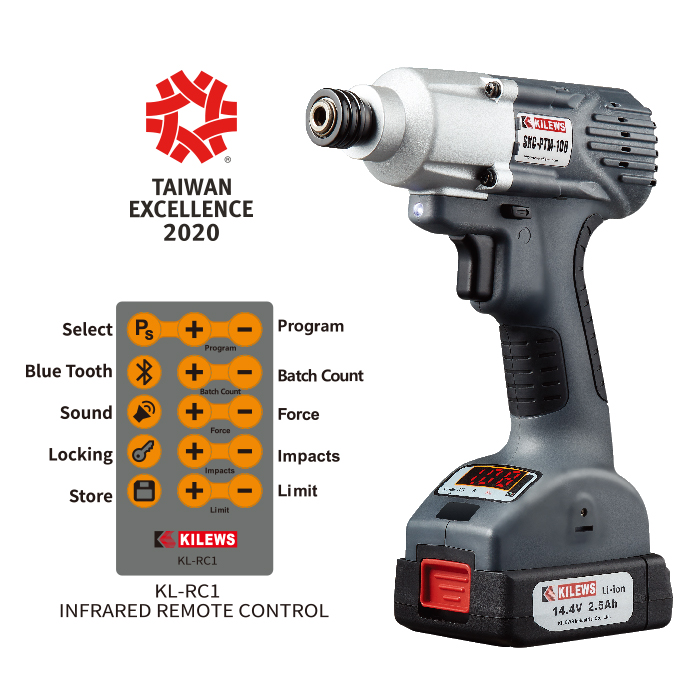

BRUSHLESS INDUSTRIAL IMPACT WRENCH
SKC-PTM-50/70/100/200
Product Features
•OK & NG indicator - Prevent cross head and stripped screw to secure fastening quality.•Program - Max. 5 programs to use in a sequence.
•Counter - Counter reminds user for no. of remaining untighten screw.
•Low battery alert - To judge best timing to change battery.
•Prohibit setting configuration - When activated, user cannot change settings without remote control. This is to avoid any user to change tool settings intentionally.
•Low voltage compensation, stable power output to ensure torque output stability.
High precision

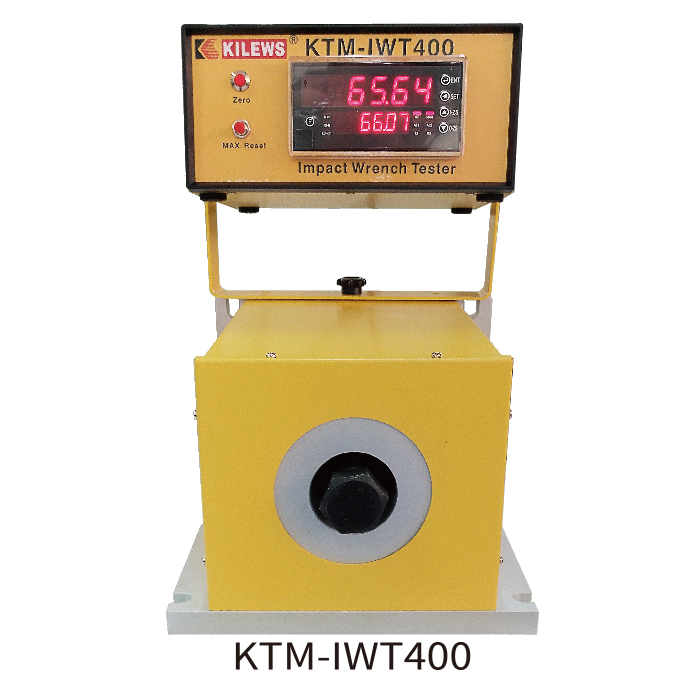

- Set PTM-50 at 80% output using M12 bolt (socket size: 19mm), KTM-IWT400 tester measured PTM-50 torque accuracy is ±8~10%.
- Set PTM-70 at 80% output using M16 bolt (socket size: 24mm),KTM-IWT400 tester measured PTM-70 torque accuracy is ±8~10%.
- Set PTM-100 at 80% output using M16 bolt (socket size: 24mm),KTM-IWT400 tester measured PTM-100 torque accuracy is ±8~10%.
- Set PTM-200 at 80% output using M20 bolt (socket size: 30mm),KTM-IWT400 TESTER MEASURED PTM-200 torque accuracy is ±8~10%. ※Socket weight, driver handling, bolt property class, bolt size may all affect torque output.
| Specifications | ||||
| Model | SKC-PTM-50 |
SKC-PTM-70 |
SKC-PTM-100 |
SKC-PTM-200 |
| Input Voltage | 14.4V |
14.4V |
14.4V |
14.4V |
| Free Speed(r.p.m)+/-10% | 0 ~ 1900 |
0 ~ 2600 |
0 ~ 2000 |
0 ~ 1700 |
| B.P.M | 0 ~ 2500 |
0 ~ 3400 |
0 ~ 2600 |
0 ~ 2100 |
| Torque(N.m) | 8 ~ 50 |
20 ~ 70 |
20 ~ 100 |
25 ~ 200 |
| Bolt Size (Class 12.9) | M6、M8、M10、 M12 |
M8、M10、M12、M14 |
M10、M12、M14、M16 |
M12、M14、M16、M20 |
| Torque Tester | KTM-IWT50、KTM-IWT400 |
KTM-IWT400 |
KTM-IWT400 |
KTM-IWT400 |
| Torque | Torque(M6) 3-20N.m |
Torque(M8) 8-30N.m |
Torque(M10) 8-40N.m |
Torque(M12) 15-110N.m |
Torque(M8) 3-20N.m |
Torque(M10) 8-40N.m |
Torque(M12) 20-70N.m |
Torque(M14) 25-120N.m |
|
Torque(M10) 5-30N.m |
Torque(M12) 20-60N.m |
Torque(M14) 20-90N.m |
Torque(M16) 25-140N.m |
|
Torque(M12) 12-50N.m |
Torque(M14) 25-70N.m |
Torque(M16) 25-100N.m |
Torque(M20) 25-200N.m |
|
| Bit Size |  |
 |
 |
 |
| Weight(kg) | 0.98 (Without Battery) |
1 (Without Battery) |
1.02 (Without Battery) |
1.5 (Without Battery) |
| Size(mm) | 174X202(LXH Without Battery) |
219X220(LXH Without Battery) |
||
| Applicable Battery | SKC-LB1430 |
SKC-LB1430 |
SKC-LB1430 |
SKC-LB1430 |
| Applicable Charge Station | SKC-P70W |
SKC-P70W |
SKC-P70W |
SKC-P70W |
| Optional Accessories | KL-RC1 |
|||
